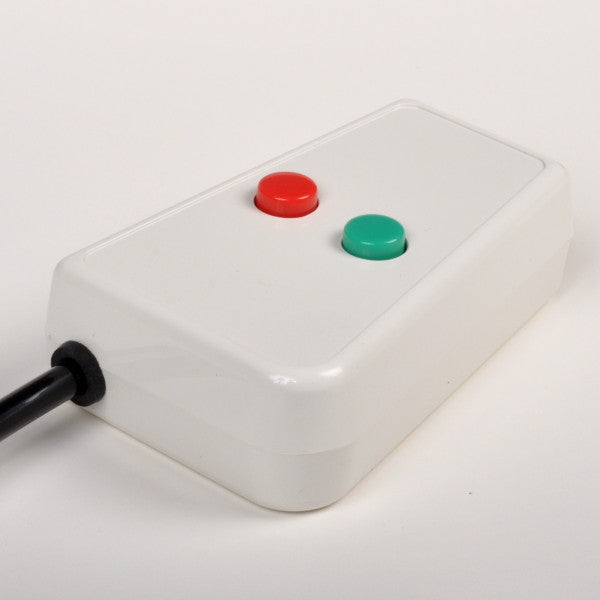

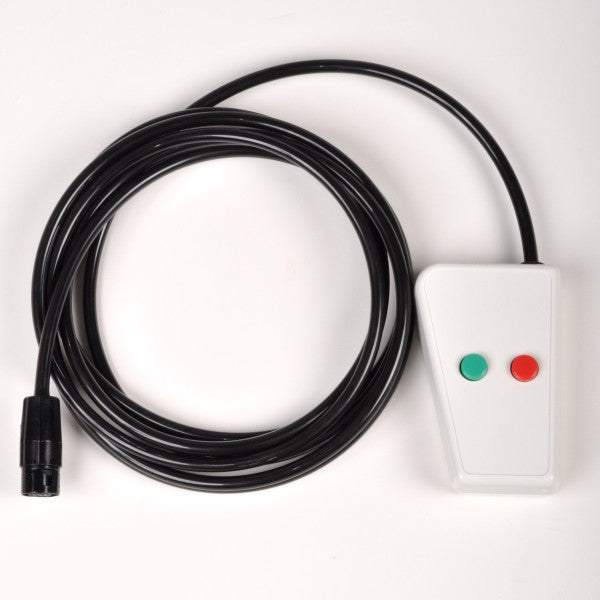

2 Button Green Red

Current Designs' fMRI response pad is the perfect choice for computer response tasks used in the human brain mapping project. It is non-magnetic, non-electronic, and entirely made out of plastic, so will not add noise to the images or raise safety concerns in the MR/MEG room or similarly demanding environments. There is a less expensive, non-MR trainer available for this response pad for use outside the magnet room.

Specifications

• Handheld for the FIU-905, FIU-932 and Birch interfaces
• Two 0.42 in. (1.1 cm) colored round buttons (green and red)
• 0.8 in. (2 cm) button spacing center to center
• Button travel: 0.070" +/- 0.010" (1.78 mm +/- 0.25mm)
• Peak force: 170g +/- 30g
• Nonlinear force/displacement curve for natural tactile feedback
• Ergonomic enclosure 1.25 x 3.75 x 2.25/1.75 in. (2.8 x 9.5 x 5.8/4 cm)

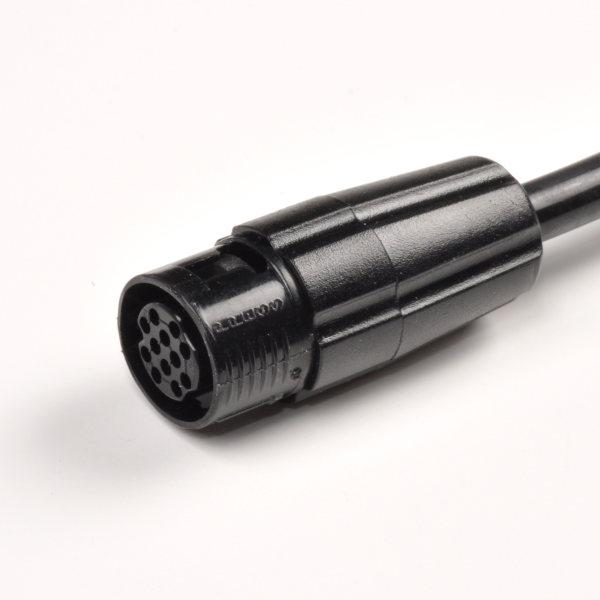

• 10 ft (3 m) long fiber pigtailed connector
• Active light levels for handheld identification and gain adjustment

What Else Is Needed

This handheld response device needs an electronic interface to function. Depending on the setup, a removable fiber bundle is also required. In most cases you will also need a long optical fiber extension bundle to allow this device to be used at a distance from the interface unit. Examples of the interface and bundle are shown below in the Related Products section.
