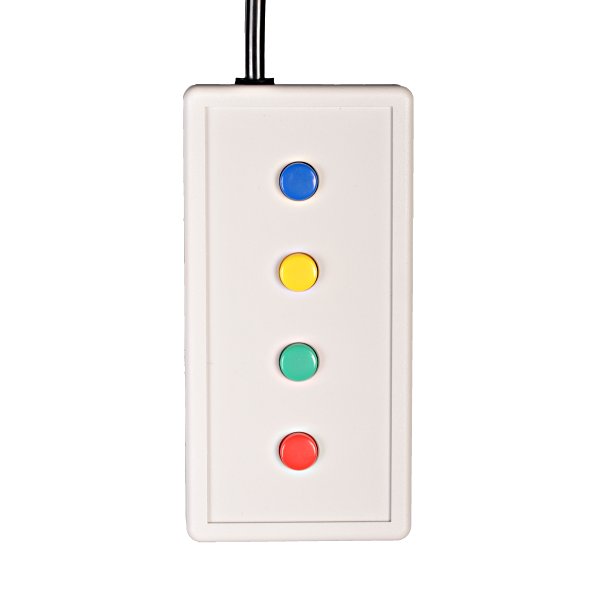

4 Button Inline

Current Designs' fMRI response pad is the perfect choice for computer response tasks used in the human brain mapping project. It is non-magnetic, non-electronic, and entirely made out of plastic, so will not add noise to the images or raise safety concerns in the MR/MEG room or similarly demanding environments. There is a less expensive, non-MR trainer available for this response pad for use outside the magnet room.

Specifications

• Handheld for the FIU-905, FIU-932 and Birch interfaces

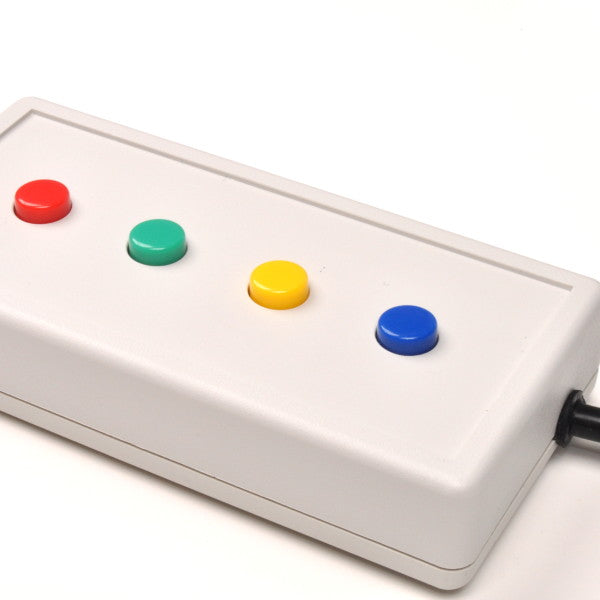

• Four 0.42 in. (1.1 cm) colored round buttons (blue, yellow, green and red)
• Button travel: 0.070" +/- 0.010" (1.78 mm +/- 0.25mm)
• Peak force: 170g +/- 30g
• Nonlinear force/displacement curve for natural tactile feedback
• Inline pattern 1 in. (2.5 cm) button spacing center to center
• Rectangular enclosure 1.0 x 5.1 x 2.5 in. (2.5 x 13 x 6.4 cm)

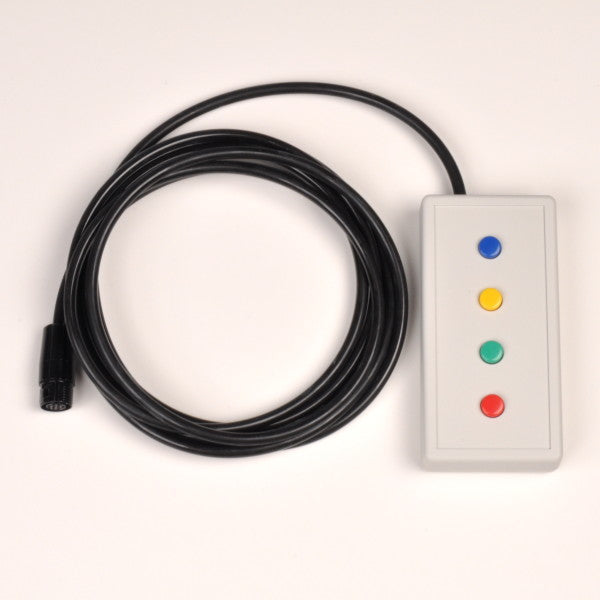

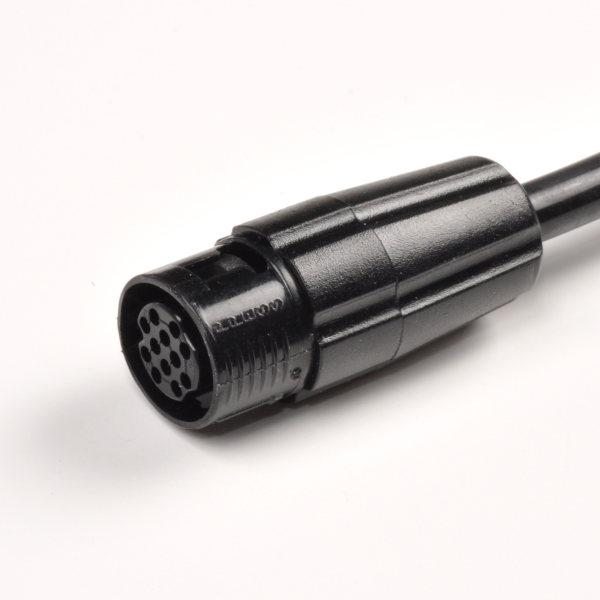

• 10 foot long fiber pigtailed connector
• Active light levels for handheld identification and gain adjustment

What Else Is Needed

This handheld response device needs an electronic interface to function -- that converts the optical signals to standard computer interfacing signals. In most cases you will also need a long optical fiber extension bundle to allow this device to be used at a distance from the interface unit. Examples of the interface and bundle are shown below in the Related Products section.
