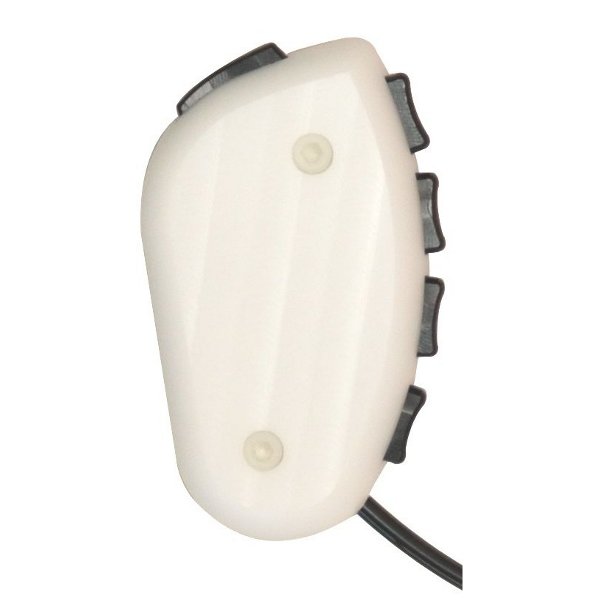

Current Designs' new fMRI five button response pad is the perfect choice for a wide range of computer response tasks used in the human brain mapping project. It is non-magnetic, non-electronic, and entirely made out of plastic, so will not add noise to the images or raise safety concerns in the MR/MEG room or similarly demanding environments.

There is a less expensive, non-MR trainer available for this response pad for use outside the magnet room.

Specifications

• Handheld for the FIU-905, FIU-932 and Birch interfaces

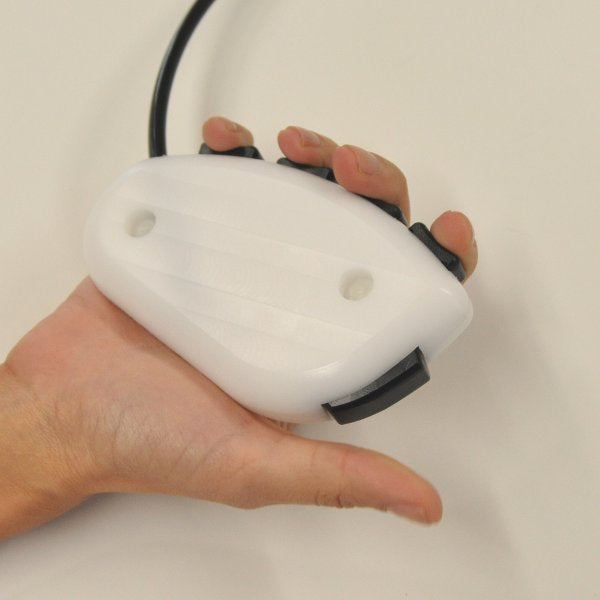

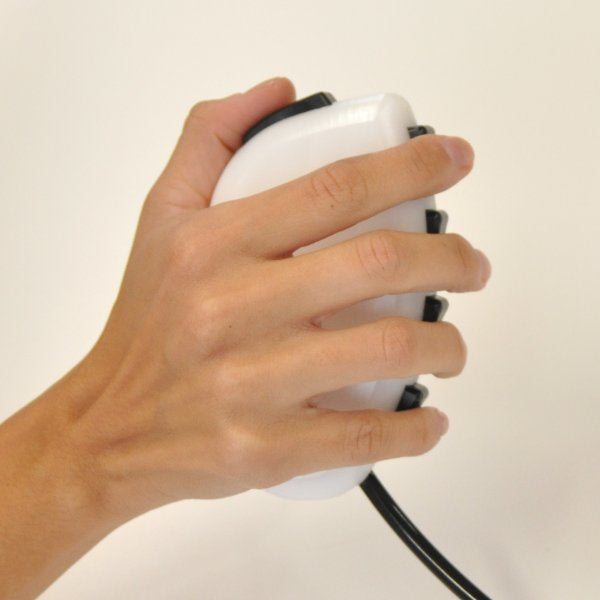

• One 1 in. (2.5 cm) long levers for thumb and four 0.75 in. (1.8 cm) cupped buttons for fingers.
• Enclosure is 5 in. (12.5 cm) x 3 in. (7.5 cm), 1 in. (2.5 cm) thick.
• 10 ft (3 m) long fiber pigtailed connector
• Requires 8-channel removable fiber optic bundle
• Active light levels for handheld identification and gain adjustment

What Else Is Needed

This handheld response device needs an electronic interface to function -- that converts the optical signals to standard computer interfacing signals. In most cases you will also need a long optical fiber extension bundle to allow this device to be used at a distance from the interface unit. Examples of the interface and bundle are shown below in the Related Products section.
