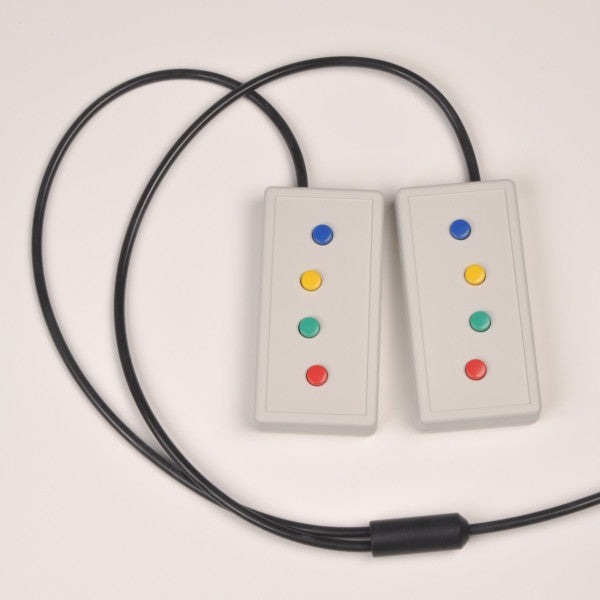

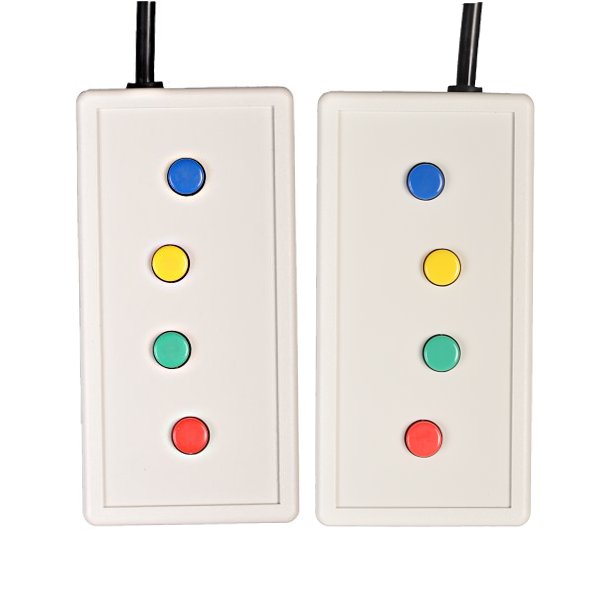

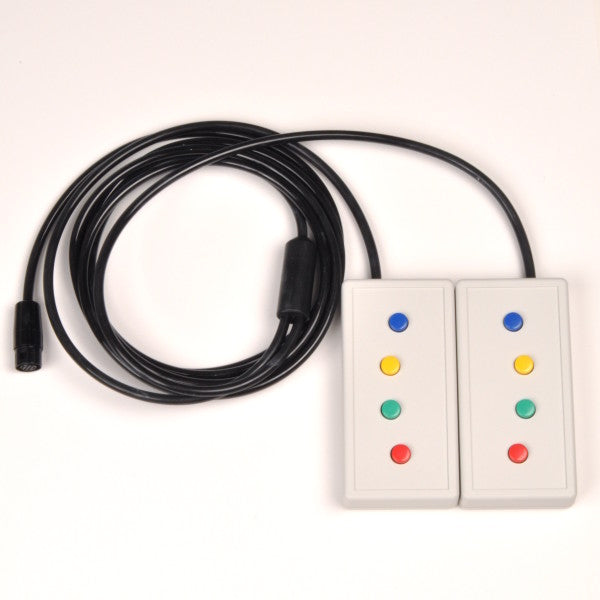

8 Button Bimanual Curved Lines

Current Designs' fMRI response pad is the perfect choice for computer response tasks used in the human brain mapping project. It is non-magnetic, non-electronic, and entirely made out of plastic, so will not add noise to the images or raise safety concerns in the MR/MEG room or similarly demanding environments. There are two less expensive non-MR trainers (TR-1x4-CL, TR-1x4-CR) available for this response pad for use outside the magnet room.

Specifications

• Handheld for the FIU-932 and Birch interfaces

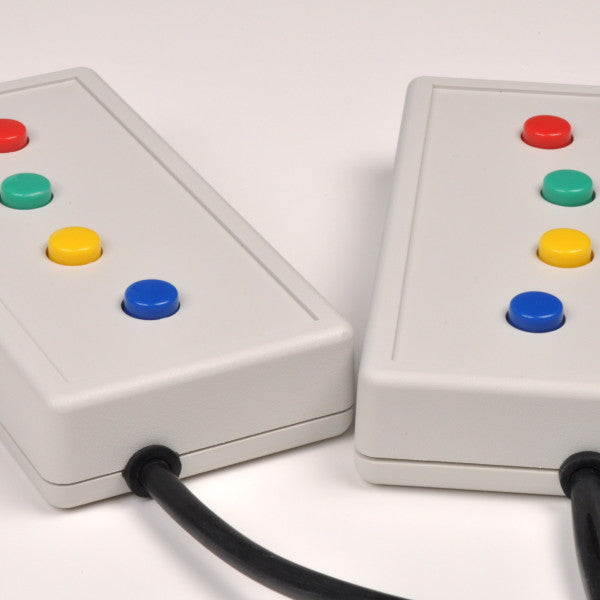

• Eight (8) 0.42 in. (1.1 cm) colored round buttons
• Curved lines with 1.03 in. (2.6 cm) button spacing center to center with the blue and red buttons offset 0.125 in. to one side and the yellow and green buttons offset 0.125 in. to the other
• Two rectangular enclosures 1.0 x 5.1 x 2.5 in. (2.5 x 13 x 6.4 cm)

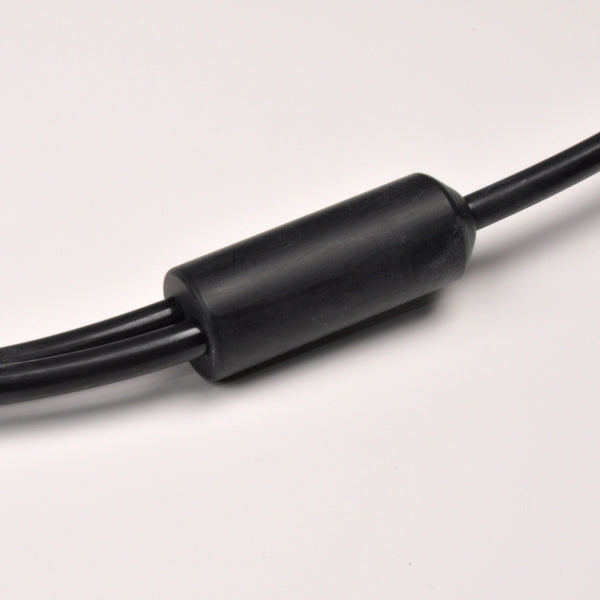

• 3 ft (0.9 m) Y spacing between two boxes

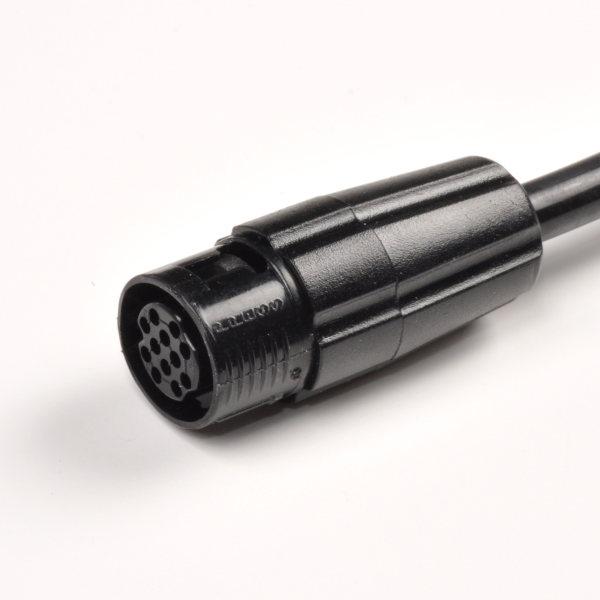

• 8.5 ft (2.6 m) long fiber pigtailed connector from Y, 10 ft (3 m) total
• Active light levels for handheld identification and gain adjustment

What Else Is Needed

This handheld response device needs either the FIU-932 or Birch electronic interface to convert the optical signals to standard computer interfacing signals. In most cases you will also need a long optical fiber extension bundle to allow this device to be used at a distance from the interface unit. The PKG-ADV compatible bundles are shown below in the Related Products section.
