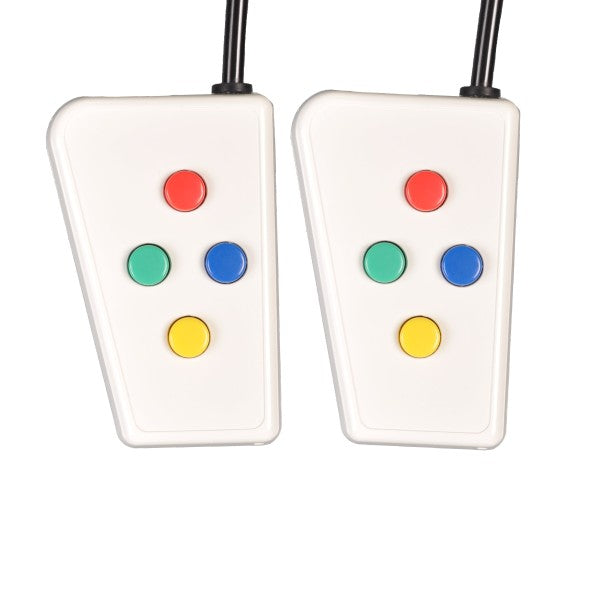

8 Button Bimanual Diamonds

Current Designs' fMRI response pad is the perfect choice for computer response tasks used in the human brain mapping project. It is non-magnetic, non-electronic, and entirely made out of plastic, so will not add noise to the images or raise safety concerns in the MR/MEG room or similarly demanding environments. There are less expensive non-MR trainers (TR-1x4-D) available for this response pad for use outside the magnet room.

Specifications

• Handheld for the FIU-932 and Birch interfaces
• Eight (8) 0.42 in. (1.1 cm) colored round buttons
• 0.8 in. (2 cm) button spacing center to center (green and blue buttons)
• 1.5 in. (4 cm) button spacing center to center (red and yellow buttons)
• Ergonomic enclosure 1.25 x 3.75 x 2.25/1.75 in. (2.8 x 9.5 x 5.8/4 cm)
• 3 ft (0.9 m) Y spacing between two boxes
• 8.5 ft (2.6 m) long fiber pigtailed connector from Y, 10 ft (3 m) total
• Active light levels for handheld identification and gain adjustment

What Else Is Needed

This handheld response device needs an electronic interface to function -- that converts the optical signals to standard computer interfacing signals. In most cases you will also need a long optical fiber extension bundle to allow this device to be used at a distance from the interface unit. The required interface and compatible bundles are shown below in the Related Products section.
