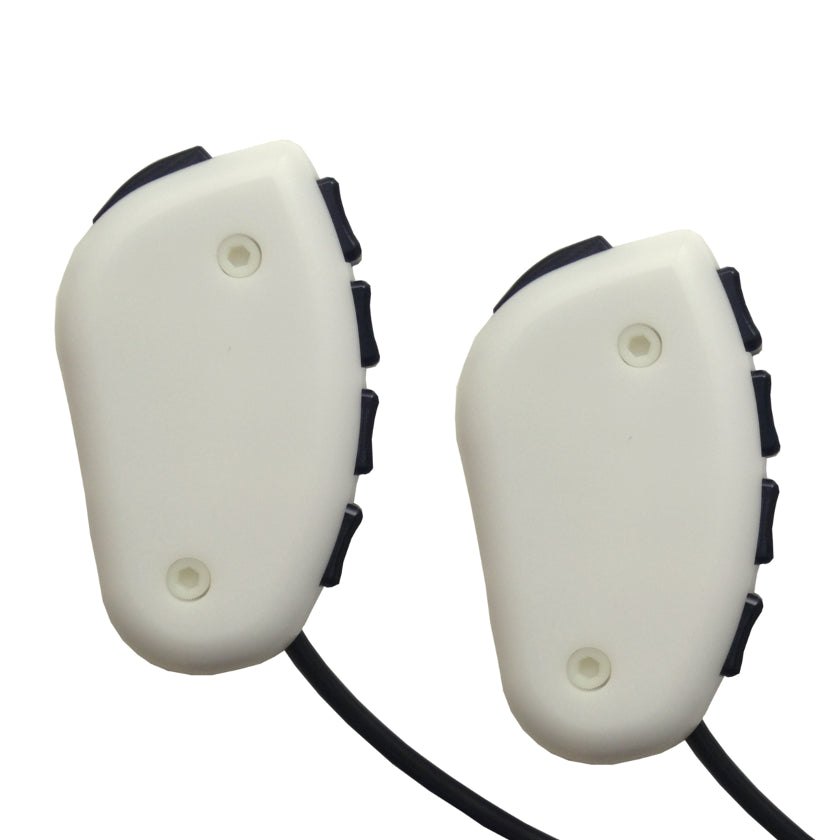

Pyka 8 Button Bimanual - Pinkies Disabled

Current Designs' new fMRI eight button response pad is the perfect choice for a wide range of computer response tasks used in the human brain mapping project. It is non-magnetic, non-electronic, and entirely made out of plastic, so will not add noise to the images or raise safety concerns in the MR/MEG room or similarly demanding environments.

There is a less expensive, non-MR trainer available for this response pad for use outside the magnet room.

Specifications

• Handheld for the FIU-932 and Birch interfaces
• Eight 0.75 in. (1.8 cm) cupped buttons for fingers and two 1 in. (2.5 cm) long thumb button rests
• Two enclosures, each 5 in. (12.5 cm) x 3 in. (7.5 cm), 1 in. (2.5 cm) thick.
• 3 ft (0.9 m) Y spacing between two boxes
• 8.5 ft (2.6 m) long fiber pigtailed connector from Y, 10 ft (3 m) total length
• Active light levels for handheld identification and gain adjustment

What Else Is Needed

This handheld response device needs an electronic interface to function -- that converts the optical signals to standard computer interfacing signals. In most cases you will also need a long optical fiber extension bundle to allow this device to be used at a distance from the interface unit. The required interface and compatible bundles are shown below in the Related Products section.
