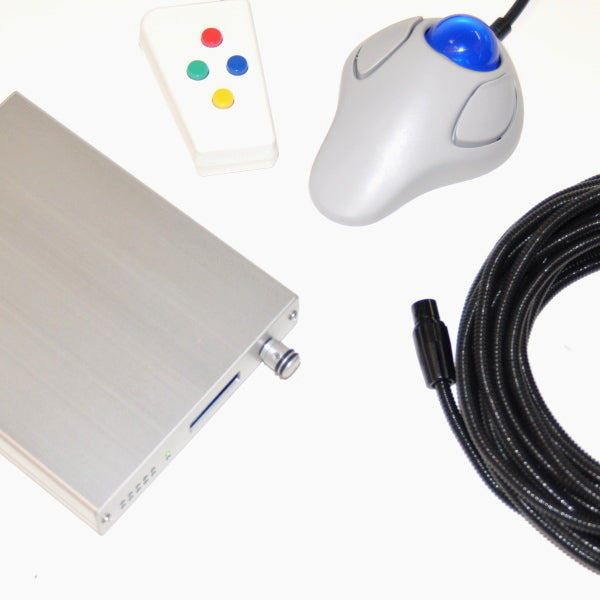

Advanced Package

The advanced package includes the following items:

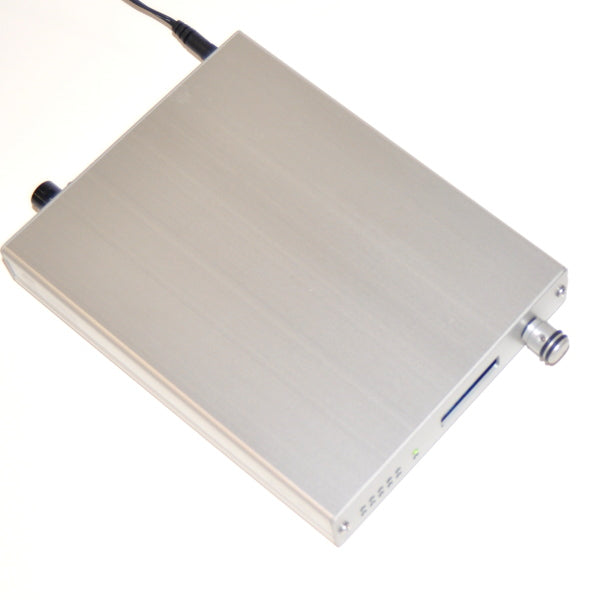

• An Electronic Interface: either FIU-932 or BIRCH-OIU
• Power supply and plug adapters

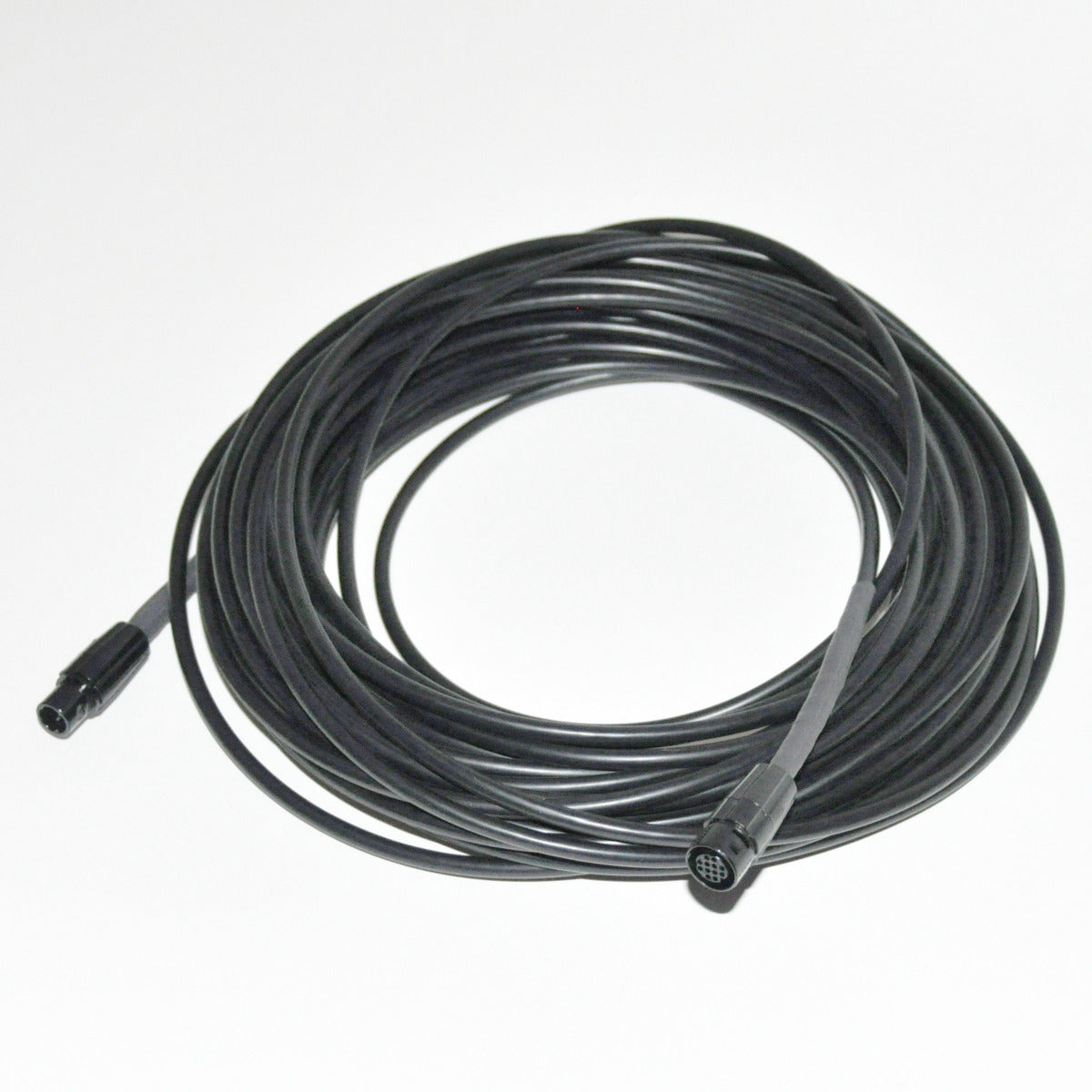

• Twelve-fiber bundle extension (BE-XX) available in 10m, 17m, 25m and 31m lengths

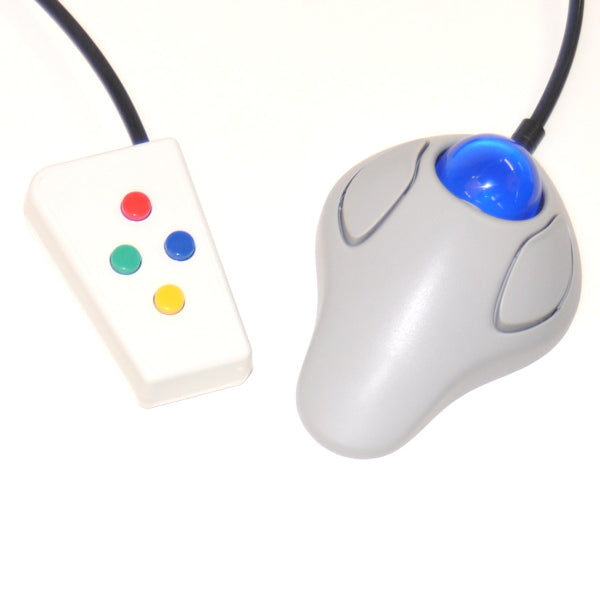

• Response devices of your choice
• Standard USB (CB-USB-2) and optical flashing (CB-932-OUSB-1) cables
• Additional cables include serial, parallel, optical trigger and SMB trigger

For more information on each item go to the fORP components menu.

fORP Interface Features

• Bright display or touchscreen for configuration - simplifies setup
• Automatic handheld device identification - speeds up setup
• Optical triggering - no need to have an optical-TTL converter
• Faster everything - better timing, improved responsiveness
• 32 channels with automatic gain adjustment and response device identification
• Internal programs (firmware) can be locally upgraded

Outputs

• The primary output for most users is the full speed USB output which simplifies interfacing to any hardware or program
• RS-232 serial and TTL parallel outputs are also available for special interfacing needs and for support of older programs and computers

Inputs

• Only one response device can be connected at a time. For two-handed responses, order bimanual response devices. Most devices are automatically recognized and calibrated, which streamlines set up and changing configurations.
• Both optical and TTL triggers inputs eliminates need for an additional optical-to-TTL trigger converter box.
