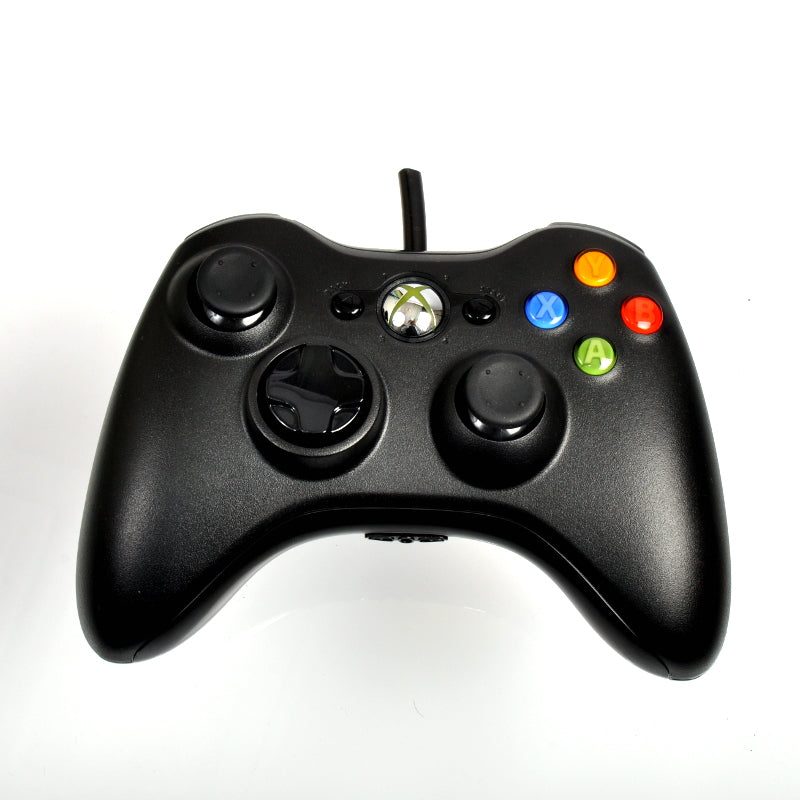

Gamepad

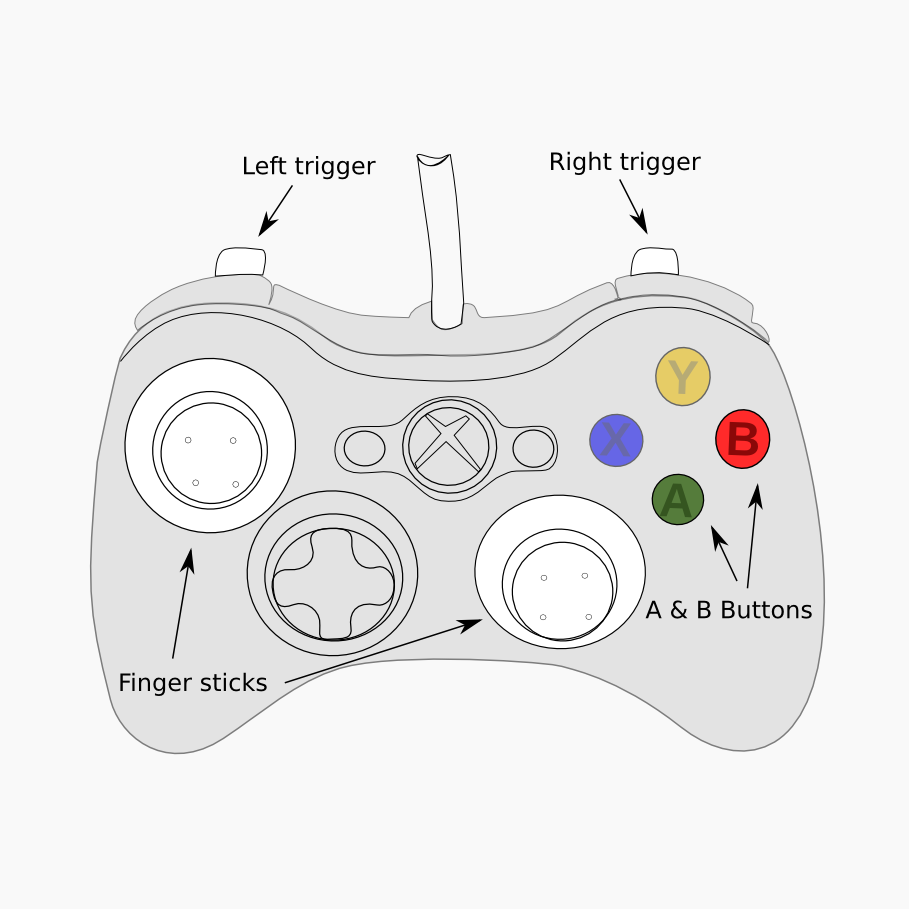

Gamepad is an 8-channel game controller response device which is suitable for complex gaming tasks. The device has two finger sticks along with four buttons including two triggers, A and B. Offering a familiar look and feel, inside it is non-magnetic, non-electronic, and entirely made out of plastic, so will not add noise to the images or raise safety concerns in the MR/MEG room or similarly demanding environments.

Gamepad has two analog finger sticks and four buttons. If your task uses eight buttons, please see Gamepad 2 .

Specifications

• Handheld for the FIU-932 and Birch interfaces
• 8-channel MR-compatible gamepad based on popular game controller
• Two X-Y thumbsticks
• Four buttons including left and right triggers, A (green) and B (red)

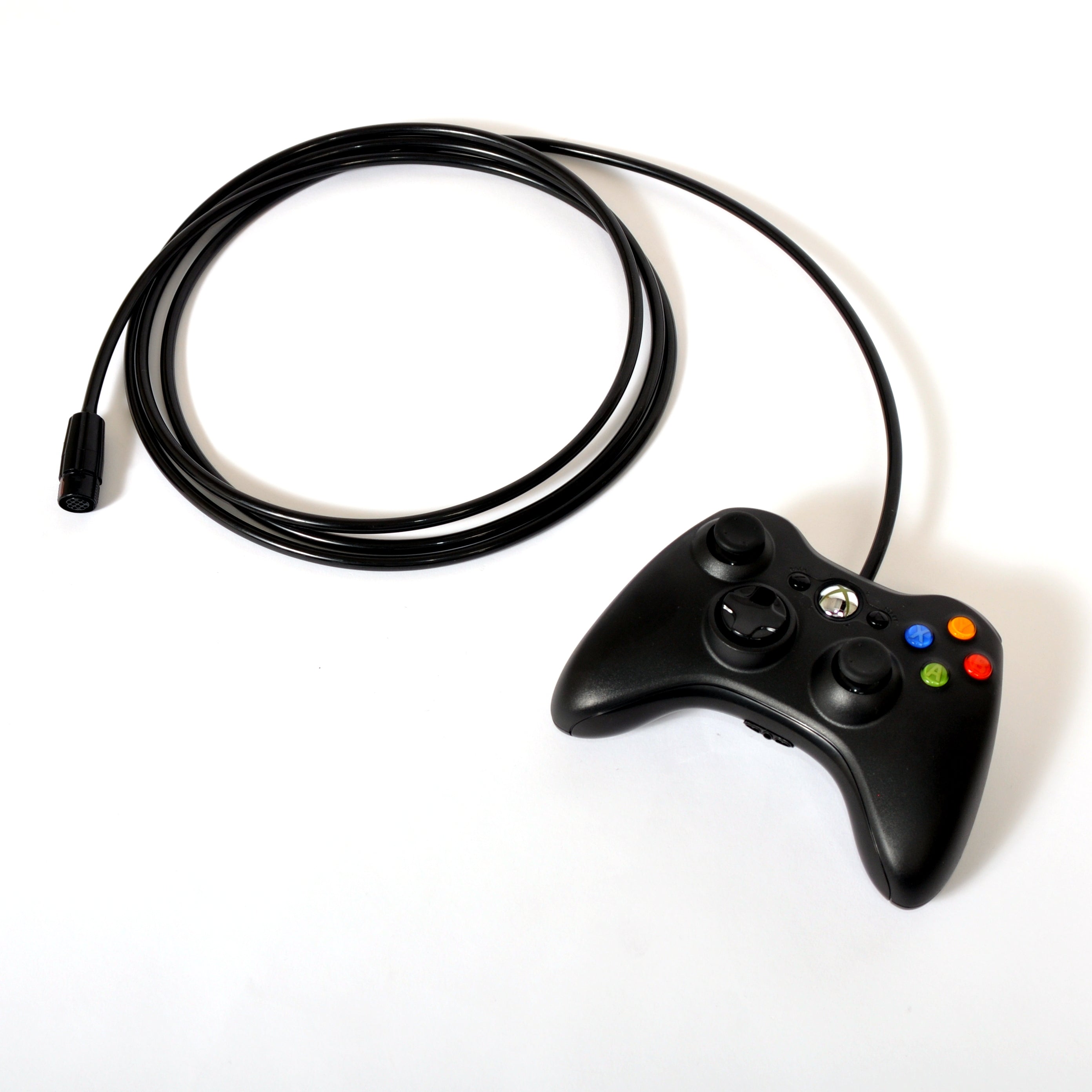

• 10 ft (3 m) long fiber pigtailed connector
• Contains no metal, nothing magnetic, and no electronics: 100% MR compatible
• Active light levels for handheld identification and gain adjustment

What Else Is Needed

This handheld response device needs an electronic interface to convert the optical signals to standard computer interfacing signals. In most cases you will also need a long optical fiber extension bundle to allow this device to be used at a distance from the interface unit. Examples of the interface and bundle are shown below in the Related Products section.
