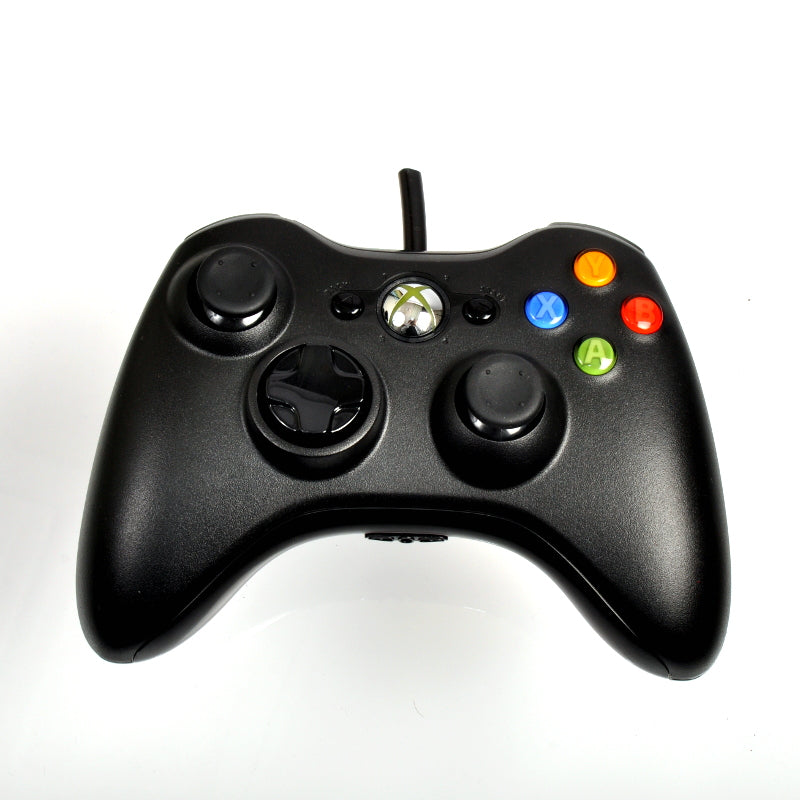

Gamepad2

Gamepad 2 is an 8-channel game controller response device which is suitable for complex gaming tasks. The device has eight buttons including two triggers, A and B. Offering a familiar look and feel, inside it is non-magnetic, non-electronic, and entirely made out of plastic, so will not add noise to the images or raise safety concerns in the MR/MEG room or similarly demanding environments.

Gamepad 2 has eight buttons and no analog sticks or analog functions of any kind. If your task would use analog sticks please see Gamepad 2.

Specification

• Handheld for the 932 interface
• 8-channel MR-compatible gamepad based on popular game controller

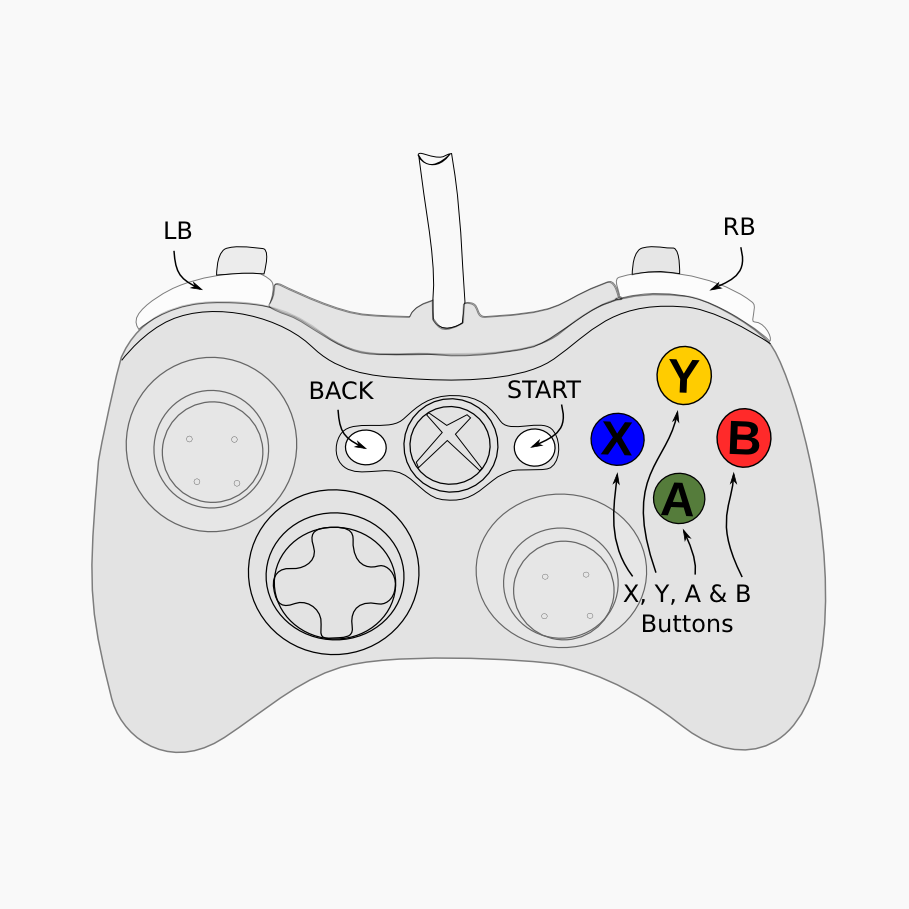

• Eight buttons including: X (blue), Y (yellow), A (green) , B (red), START, BAC, RB and LB (see diagram)
• No analog sticks - only buttons

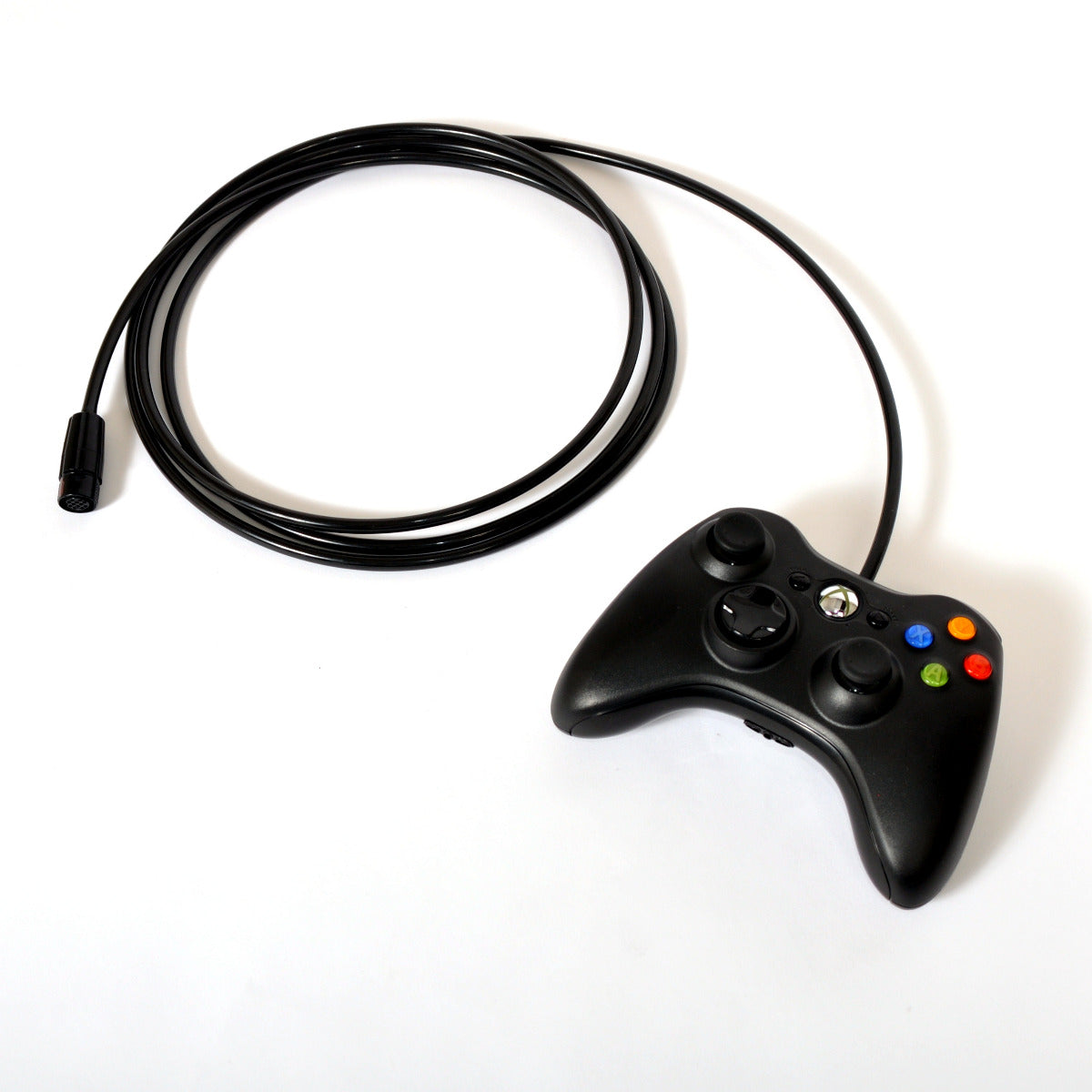

• 10 ft (3 m) long fiber pigtailed connector
• Contains no metal, nothing magnetic, and no electronics: 100% MR compatible
• Active light levels for handheld identification and gain adjustment

Button Outputs:

What Else Is Needed

This handheld response device needs an electronic interface to convert the optical signals to standard computer interfacing signals. In most cases you will also need a long optical fiber extension bundle to allow this device to be used at a distance from the interface unit. Examples of the interface and bundle are shown below in the Related Products section.
